Fosi Audio BT20A MAX Review — Headfonics

Lynn reviews the Fosi Audio BT20A MAX, a new desktop wireless-capable power amplifier designed for modern 2.1 home audio systems. It is currently priced at $229.99.

Disclaimer: This sample was sent to me for my honest opinion. Headfonics is an independent website with no affiliate links. I thank Fosi Audio for their support.

You can click here to learn more about Fosi Audio products previously reviewed on Headfonics.

This article follows our current scoring guidelines, which you can read here.

Fosi Audio BT20A MAX Review

Summary

For a starter or secondary system, the Fosi Audio BT20A Max desktop wireless-capable power amplifier covers all bases for sources and playability within a home audio system. Whether you are integrating a subwoofer or rotating in older gear, it handles the task with ease.

Slide here to add your score on the gear!73 Votes

8.1

Pros

Enough power for most applications.

Tone controls allow for fine-tuning the sound, as an amplifier should.

Small footprint makes it eminently movable.

Cons

Some will be bothered by the fan noise.

The lack of micro-details may quell some listeners’ enjoyment.

Lack of additional inputs.

Fosi is also known for affordable desktop amplifiers, DACs, headphone amplifiers, and passive bookshelf speakers, and has recently entered the headphone category with the very popular i5.

I have not had the pleasure of trying any products from Fosi, but we do have recent reviews, including the ZD3 and K7 articles last year.

The Fosi BT20A MAX is an upgraded version of the previous two BT20 units, including the Pro. Its price ranges from $229.99 to $270, depending on the power supply you buy it with.

The BT20A MAX has a premium price over the other models, which means those changes might in fact be worth the extra cost.

So, how does it perform and compare to the likes of the ZD3,  FiiO’s BR15 R2R, and SMSL’s PA-X? I found out in my full review below.

Features

One of the biggest additions to the BT20A MAX is the use of PFFB technology.

Post-Filter Feedback helps keep distortion below 0.003% and an SNR above 112 dB. This purportedly keeps the sound more linear, with less noise, and overall, a more efficient amplifier.

Analog and digital power supplies are isolated separately. Additionally, the power source can be ordered based on your country of origin, and with a DC voltage of 32-48V, keeping a more linear power supply.

The BT20A Max‘s output power can reach 300W per channel @4 Ω (180Wx2@8Ω), which can drive not only most bookshelf speakers, but also many floor speakers.

I utilized this power in two very different speakers to test how well the BT20A MAX could hold up.

For use with a subwoofer, a toggle can cut off all sound below 80Hz, which is then routed to the subwoofer, minimizing crosstalk. You can also quickly defeat any tone changes (bass & treble) with a switch on the back.

Qualcomm’s QCC3095 BT6.0 chipsets deliver a wireless connection with up to SBC/AAC/aptX/aptX HD/aptX Adaptive/aptX/LDAC decoding capability.

An internal fan, mounted below an opening on the top case, has drawn mixed reviews, with some stating that, in near-field use, it can be heard readily.

I only heard it when actively listening between songs. Vented sides bring in cooler air, helping to keep the Class-D amplifier relatively cool.

Design

The BT20A MAX is a slight departure from Fosi’s traditional black box approach, with soft, rounded edges and a bit of design flair.

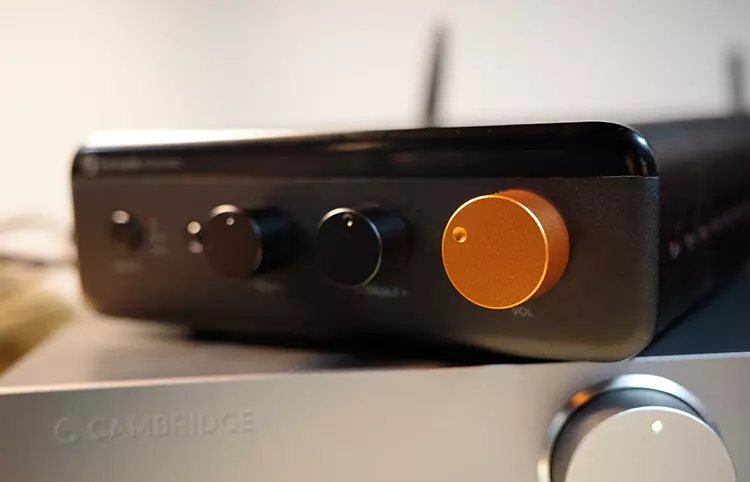

Lacking only an LED screen on the front, the three knobs of bass, treble, and an orange potentiometer volume knob somewhat dominate.

To the left of those are the IR bubble for the remote, a trio of LED mode lights, and the bubbled power/mode switch to the far left.

I do wish the mode lights and noted function were larger, but with a bit of repetitiveness, you quickly understand which function is active.

The sides have round vent holes, highlighted with an orange metal mesh for cooler air intake. The top mimics the orange metal vent with the “BT20A MAX” highlighting where air exits, pushed out by the fan. Air movement felt very slight when placing my hand over the BT20A MAX.

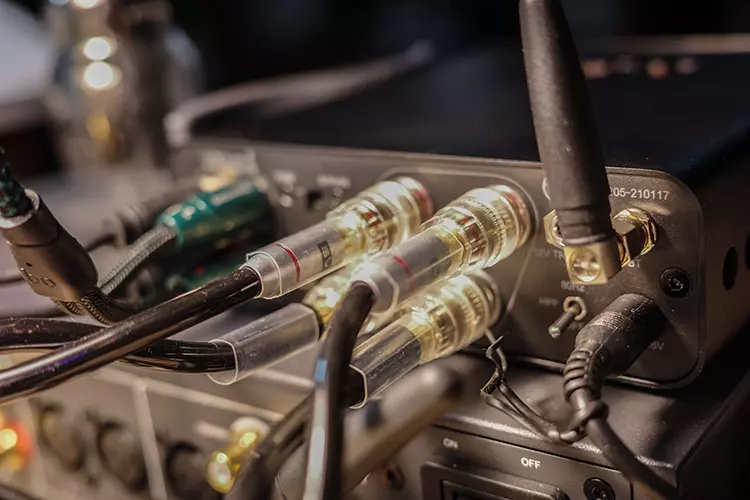

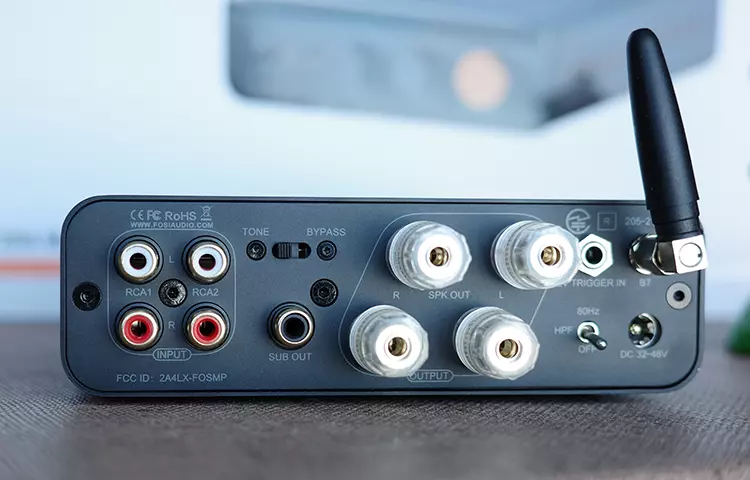

Around back, dual RCA inputs are far left, followed by the tone defeat switch and subwoofer output below the switch.

Diagonal (much appreciated) speaker mounts with traditional wire holes (or banana plugs) take up the center ⅓. Connecting either option was easy.

To the right, the 12V plug lies side-by-side with the attached BT antenna. Using the 12V plug allows for connection between many devices, and control of the on/off functionality without having to worry about each unit. A nice touch, should you be set up that way.

Below the two mentioned above is the high-pass filter (HPF) and the power plug. I did find access to the HPF toggle less than ideal, but if you run with or without a subwoofer, it is essentially set-and-forget.

I/O

Two RCA inputs along with 6.0 BT are the sole options, but sufficient for use with a CD player, turntable (with internal phono pre-amp), and whatever your BT device might be.

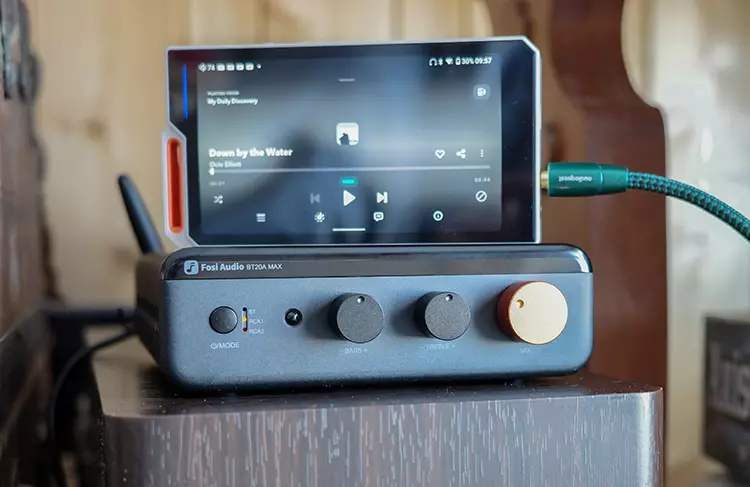

Once set up in such a manner, I was able to utilize a turntable (through an external phono pre-amp, and a BT TT), my iPhone 16 Pro to the BT20A MAX via BT, and an Oppo BDP83 CD transport through the JC Acoustics UDP-5 as a pre-amp.

Not quite what you might hook up using a full two-channel amplifier, but for a “starter” amplifier, this is more than sufficient, especially if you bypass the external DAC or pre-amp for something more direct.

I used the BT20A MAX with and without a pre-amp, or an external DAC and phono pre-amp.

Controls

Much has been said about the lack of fine control when the volume is set very low. I never had an issue and could attain very low volume levels with the remote and by hand. There was no channel dropout, like can sometimes happen with devices such as this.

Copious amounts of bass and treble (I am unsure of how much, but I would guess +/-9-12dB) can be added using the small knobs. Thankfully, there is a center detent for the neutral position. Testing was done mostly in that neutral position.

The power button can also be used to change modes, but other than for testing, I utilized the remote. Functionality of the button was crisp with no slop.

Remote

The full-function remote can control up to four equipped Fosi devices simply by activating each with a button. Since I did not have any other Fosi device, I was unable to test this function. There is even a dimming button for those Fosi devices with screens.

Play, pause, FF, and REW pair with the volume up and down on the circular center of the remote. Tactility is quite good.

A red power button and mute button round out the controls. Lacking only a backlight, the remote functioned well throughout the testing, with no missteps.

Use at odd angles was also tested to see how obtuse usage could get. The remote will not go through solid objects and has to be pointed at the IR reader on the front panel.

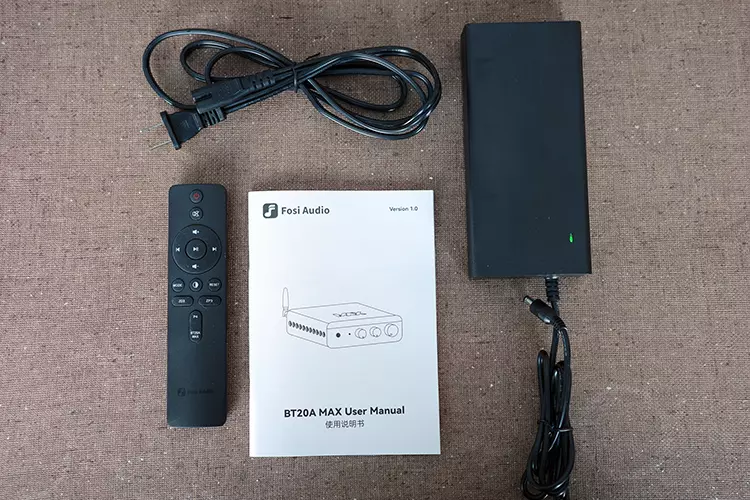

Packaging & Accessories

The BT20A MAX is heavier than I thought, with a good part of that heft coming from the heatsink. But the external power supply is the heaviest part, which shows the dedication Fosi has for controlling external EM noise.

Separated by soft foam cutouts, each part of the Fosi is well-protected, and one need not worry about potential damage.

Included is a thorough multi-language starter guide, which includes troubleshooting should the need arise.

Sound Impressions

The following sound impressions of the Fosi Audio BT20A MAX were completed with the JC Acoustics hooked to the Oppo BDP-83 CD transport, and the FiiO TT13 turntable (both via RCA and BT), with the HiBy R4 (RCA mainly).

I also used the Cambridge Audio’s Alva Duo with the Denon DP1200 (Denon 110 MC cartridge), and Pro-Ject Debut Carbon (Sumiko Moonstone MM cartridge).

The iPhone 16 Pro was also connected to BT20A MAX for impressions through the KEF Q150 and Dynaco A25 speakers. The Edifier T5S subwoofer was used as well.

Summary

The Fosi Audio BT20A MAX presents a full sound with good detail. Clarity is on par with other Class-D amplifiers but lacks in the micro detail department.

The ability to fine-tune the sound using bass and treble controls can help fill in the gaps, but ultimately, micro detail is lacking.

That said, the copious levels of power provided make this a compelling option for a beginning system or secondary system.

The bass reaches quite low with the tone control, and adding a subwoofer specific to the low end helps to provide a specialization that can accommodate most listeners’ tastes.

The top end is polite and can be lifted using the treble control too, making for a good three-dimensional representation, lacking only in depth. Source input can alter the representative sound, making the BT20A MXA a versatile amplifier, too.

Timbre

The source used plays a large part in determining sound quality emanating from the BT20A MAX, as does the speaker of choice.

I found that while using the Denon DP1200 and Dynaco A25s, the sound was vibrant, punctuating, and had good pulse to it. Lacking in true bass depth can be altered using the tone control, but I found this approach to be too accentuated on full bass.

Barring the source choice, the BT20A MAX comes across as good with macro details, but lacking micro details, as mentioned above. This presents a more middle-of-the-road approach to the sound quality.

When called upon, such as with the Denon, the sound can punctuate your speakers with good verve and energy, essentially staying out of the way.

When paired with the HiBy R4 and KEF Q150s, Tidal streamed with that same energy, equaling the sound qualities. Only the limitations of the 150s held the BT20A MAX back.

Some have described the sound as on the warmer side, but I would state the qualities are more in the neutral category, with any push on either end accentuated by the input of tone controls and source. Raising the volume did not hinder the sound qualities coming forth, either.

As the volume went north, there was no punctuating of the highs or an overexuberance of lows pushing the boundaries of distortion. The more the BT20A MAX was pushed, the more the sound stayed true to the source.

Adding the subwoofer increased the low-end, with no latency either. Using YouTube videos, there was no delay between the three involved units, making the BT20A MAX equally at home for video inputs.

Staging & Dynamics

The three-dimensional stage of the BT20A MAX came across as nearly neutral, with the sound qualities listed above. Lacking in true depth, this would only come into play for a room two-channel system. In nearfield systems, the depth was sufficient to appease any concerns.

Neither height nor width extended to the point of contradicting either of the other dimensions, which can sometimes happen to counter a perceived “fault” in any one dimension. The three dimensions all played together nicely, no matter the source or speakers involved.

The only differentiation in dynamic presentation came from the source used. The MC-laden Denon TT came across as vibrant and excellent levels of detail (from the source), while the 150’s presented a more laidback signature to the listening.

If the source was dynamic and full of verve, so was the BT20A MAX’s presentation. If the source was warmer, so was the sound coming forth. The BT20A MAX stayed mostly out of the way, letting the source play the part of any potential “coloration” of sound.

Connectivity Performance

Pairing with Qualcomm’s 6.0 BT was seamless across multiple devices. Using Tidal and Qobuz through my iPhone functioned well, and music & YouTube through the HiBy R4 functioned with very low latency.

Utilizing the dual RCA inputs allowed me to have two devices hooked up for quick switching between the two.

At any one time, I had the JC Acoustics hooked for use with the Oppo BDP-83 CD transport, FiiO TT13 turntable (both via RCA and BT), and the HiBy R4 (RCA mainly).

I also included Cambridge Audio’s Alva Duo for use with the Denon DP1200 (Denon 110 MC cartridge), and Pro-Ject Debut Carbon (Sumiko Moonstone MM cartridge).

As a starter system, this is plenty, and for those looking for an office or den setup, you will most likely have items such as those listed above for a diverse usage pattern.

Click on page 2 below for my recommended pairings and selected comparisons.
